PWM TRANSISTOR CONTROL

OF DC MOTORS

FROM BATTERY SUPPLIES

by

Applications Engineering Staff

POWERTECH, INC.

0-02 Fair Lawn Avenue - Fair Lawn, NJ 07410

ABSTRACT

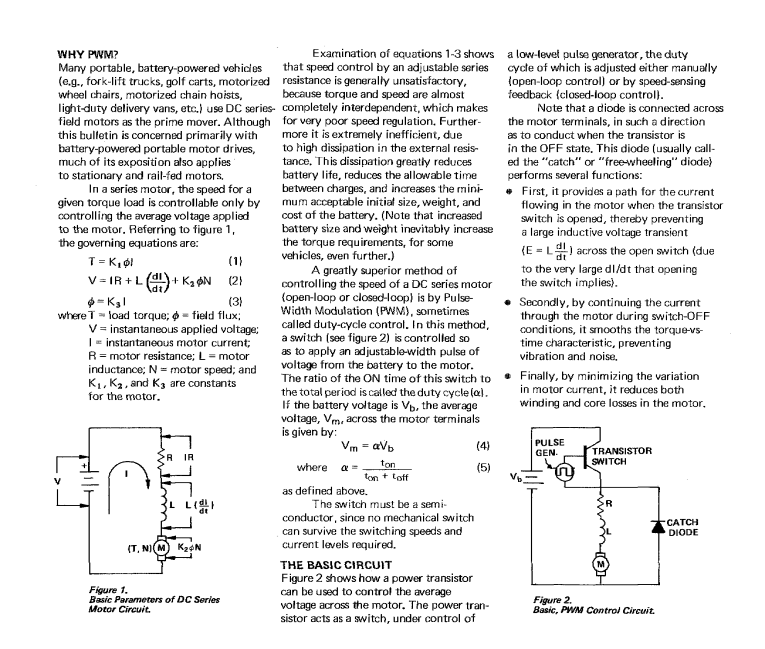

Basic Switching-Circuit Design Considerations

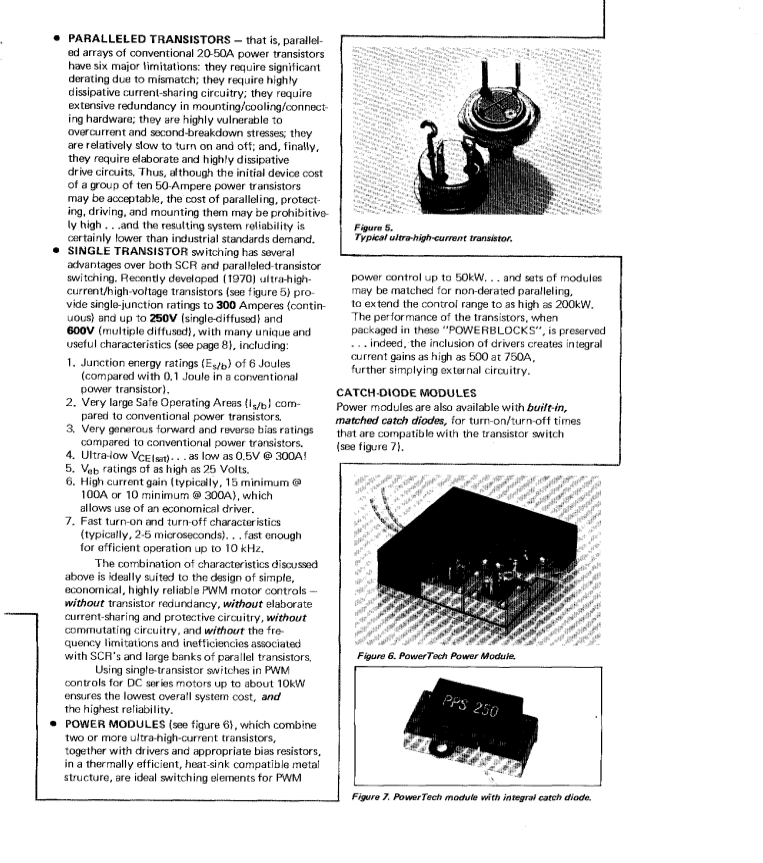

Parametric Constraints on the Switch

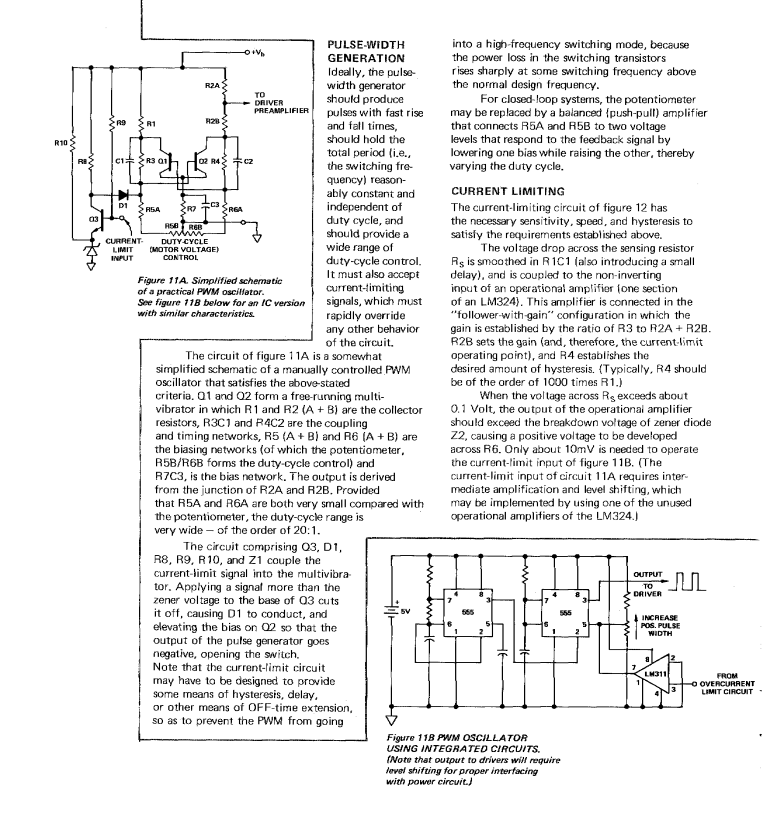

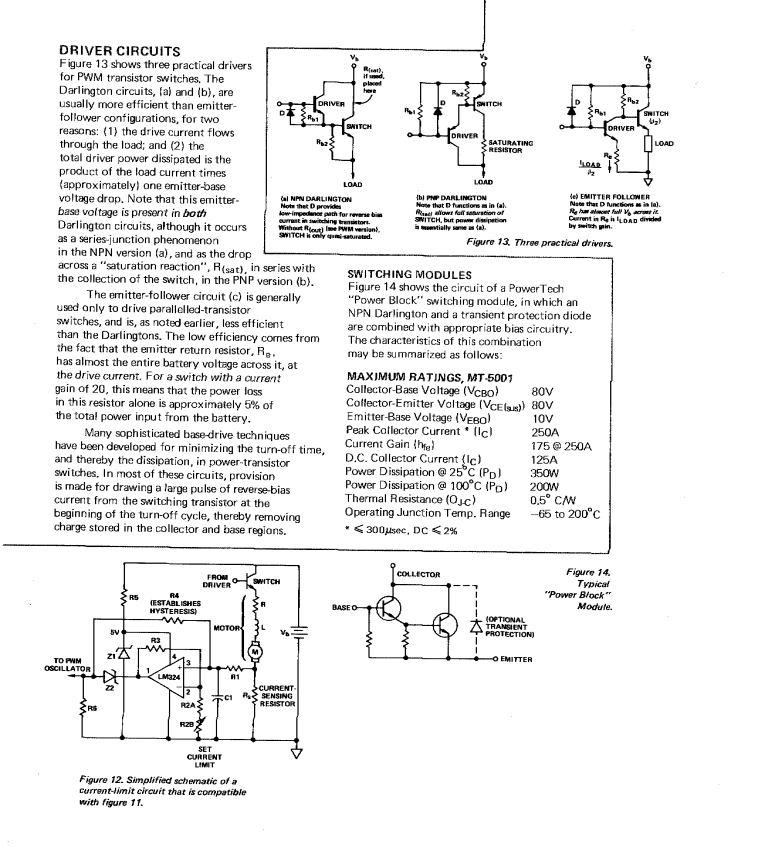

Typical Circuits and Circuit-Design Notes

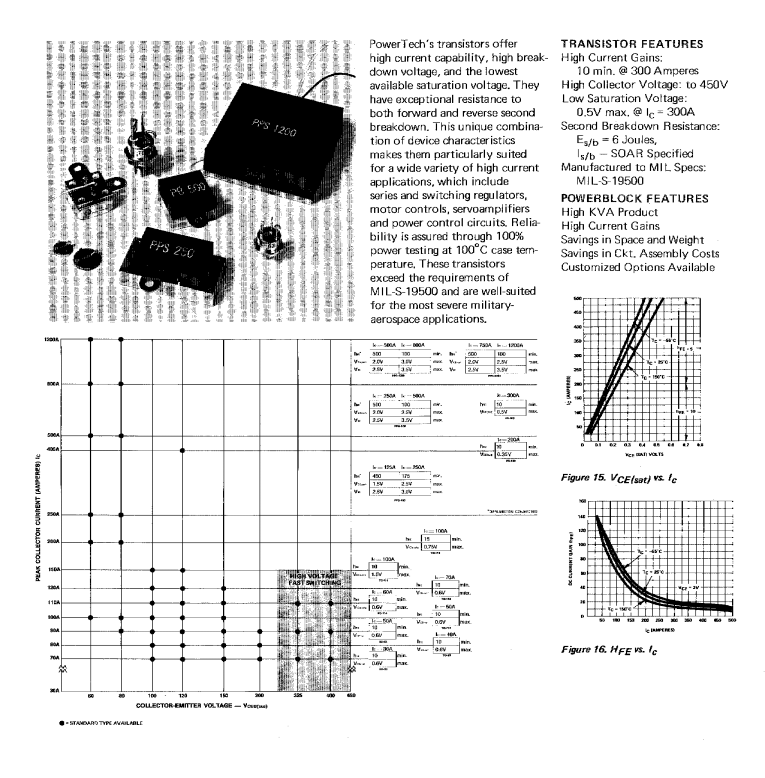

PowerTech Components & Modules for PWM Switching Applications
